2m Industrial Outdoor Wall Mount Fans Industrial Hanging Fans 6 Blades

Ask Lasest Price
Brand Name :	BIGFANS
Model Number :	WF15 / WF20
Certification :	CE&ISO
Price :	Can Be Negotiable
Payment Terms :	T/T,L/C
Supply Ability :	1000 Per Month
Delivery Time :	7-15 Working Days

Add to Cart

Product Details
Company Profile

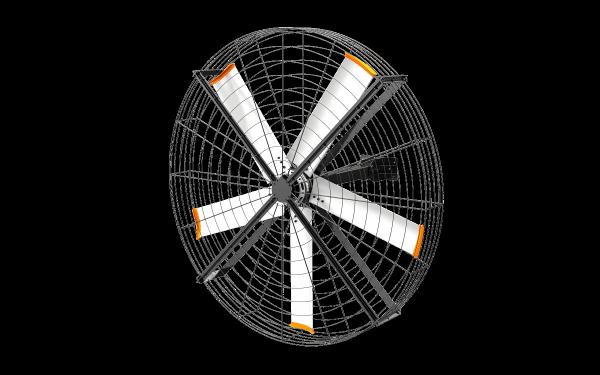

2m Industrial Outdoor Wall Mount Fans Industrial Hanging Fans 6 Blades

Product Description:

Our Fengzhi series is a high-volume fan with a diameter of up to 2 meters, which can be hoisted or wall-mounted according to the customer's site conditions. The wind direction can be adjusted according to the site conditions, and the effective distance of the fan is more than 25m, covering a large area.

Features:

- PMSM Permanent Magnet Synchronous Motor
- Wide Coverage
- Flexible Installation
- Maintenance Free

Technical Parameters:

Model	Air Volume	Maximum Speed	Weight	Motor Power	Full Load Current
WF20	2355m³/min	280RPM	130kg	0.5Kw	1.8Amps/220V
WF15	1588m³/min	300RPM	110kg	0.5Kw	1.8Amps/220V

Applications:

Manufacturing & Workshops
Warehousing & Logistics
Agricultural Facilities
Commercial Kitchens

Packing and Shipping:

Wooden Box / or by your requirements.

2m Industrial Outdoor Wall Mount Fans Industrial Hanging Fans 6 Blades

BEACON Advantages:

Space-Optimized Design: Wall-mounted installation frees up floor space and allows directional airflow adjustment.

Heavy-Duty Construction: IP-rated housings and corrosion-resistant materials withstand harsh conditions (dust, moisture, chemicals).

Energy-Efficient Motors: Variable speed control and low-power consumption align with sustainability goals.

Customizable Options: Tailor blade size, airflow range, voltage, and control interfaces (remote, smart systems) to meet specific needs.

FAQ:

Q: Are you factory or trading company?
A: We are factory which established more than 12 years.

Q: Where does your fan use in?
A: Ths fan is widely used in fitness center, outdoor wedding venues, industrial factory etc.

Q: Can you provide customized logo?
A: Yes, clients’ own logo or branding words can be customized on the motor.

Q: What is the minimum order quantity for the HVLS Industrial Fan?

A: The minimum order quantity is 10 sets.

Q: What other services can you provide?
A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.
Accepted payment type: T/T, L/C;
