Pole Mounted Hvls Fan 24ft Electric Low Noise Large Outdoor Fan For Square

Ask Lasest Price
Brand Name :	BIGFANS
Model Number :	P73
Certification :	CE&ISO
Price :	Can Be Negotiable
Payment Terms :	T/T,L/C
Supply Ability :	1000 Per Month
Delivery Time :	7-15 Working Days

Add to Cart

Product Details
Company Profile

Pole Mounted Hvls Fan 24ft Electric Low Noise Large Outdoor Fan For Square

Product Description:

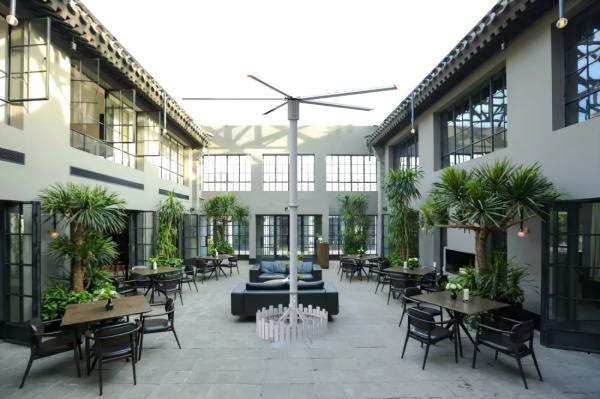

The type Pole Series large fan is a super large fan that can be used in indoor and outdoor places such as squares, bars, workshops, etc. It mainly solves the problem of ventilation and cooling in large spaces. The type Pole Series creates a unique and individual design, and its shape is like a giant umbrella, which is attractive. In addition, the type Pole Series large fans have the characteristics of low power consumption, large air volume, and low noise. In particular, they are easy to install and

are not limited by the site. They can be installed independently at any installation location you need.

Functional Configuration:

POLE
Material: Steel
Coating: 3-layer Anti-rust coating
Length : 3.5m - 6m (customisable / non-adjustable)

BLADE

Material: Aviation grade aluminium

Coating: Electrophoretic coat

Length : 12FT / 16FT / 20FT / 24FT

MOTOR

Brand: SEW

Enclosure Rating: IP56

INVERTER

Brand: Delta

Enclosure Rating: IP20

Technical Parameters:

Diameter	12ft(3.8m)	16ft(5.0m)	20ft(6.2m)	24ft(7.3m)
Model	P38	P50	P62	P73
Pole Height	3.5-6m	3.5-6m	3.5-6m	3.5-6m
Motor Power	1.5KW	1.5KW	1.5KW	1.5KW
Air Volume	11000m³/min	12050m³/min	13100m³/min	14060m³/min
Maximum Speed	95RPM	75RPM	65RPM	50RPM
Weight	230kg	270kg	310kg	350kg
Full Load Current	2.4Amps/380v 4.2Amps/220v	2.4Amps/380v 4.2Amps/220v	3.5Amps/380v 6.1Amps/220v	3.5Amps/380v 6.1Amps/220v

Applications:

Construction & Mining: Combat dust, fumes, and heat on job sites, quarries, and open-pit mines with rugged, portable designs.
Outdoor Warehousing & Logistics: Improve air circulation in shipping yards, container depots, and open-air storage areas to protect goods from humidity and heat damage.
Agriculture & Forestry: Aerate crop drying fields, livestock grazing zones, and forestry processing areas to maintain air quality and reduce moisture buildup.
Sports & Event Venues: Cool spectators and athletes in stadiums, racetracks, and outdoor concert stages with high-volume, low-noise airflow.
Transportation Hubs: Ventilate bus terminals, ferry docks, and open-air train stations to enhance passenger comfort in hot climates.

Pole Mounted Hvls Fan 24ft Electric Low Noise Large Outdoor Fan For Square

Packing and Shipping:

Wooden Box / or by your requirements :

FAQ:

Q: Are you factory or trading company?
A: We are factory which established more than 12 years.

Q: Where does your fan use in?
A: Ths fan is widely used in fitness center, outdoor wedding venues, industrial factory etc.

Q: Can you provide customized logo?
A: Yes, clients’ own logo or branding words can be customized on the motor.

Q: What is the minimum order quantity for the HVLS Industrial Fan?

A: The minimum order quantity is 10 sets.

Q: What other services can you provide?
A: Accepted delivery terms: FOB,CFR,CIF,EXW,DDP,DDU.
Accepted payment type: T/T, L/C;
