| Brand Name : | BIGFANS |
| Model Number : | SFFCA73 |
| Certification : | CE&ISO |
| Price : | Can Be Negotiable |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 1000 Per Month |
| Delivery Time : | 5-10 Working Days |
Patterson Fans HVLS Ceiling Fan SFFCA73 For GYMs And Warehouse
A high-volume low-speed (HVLS) fan is a type of mechanical fan greater than 8 feet (2.5 m) in diameter. HVLS fans are generally ceiling fans although some are pole mounted and wall mounted. HVLS fans move slowly and distribute large amounts of air at low rotational speed– hence the name "high volume, low speed".
1. Lower noise level
2. Wider blades
3. Higher air volume
4. More energy efficient
5. Improved air circulation and distribution
DIAMETER | 8ft(2.5m) | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
MODEL | SFFCA25 | SFFCA38 | SFFCA50 | SFFCA62 | SFFCA73 |
AIR VOLUME | 6500m³/min | 8600m³/min | 13050m³/min | 14100m³/min | 15850m³/min |
MAXIMUM SPEED | 140RPM | 100RPM | 70RPM | 60RPM | 55RPM |
WEIGHT | 35Kg | 51Kg | 75Kg | 90Kg | 127Kg |
MOTOR POWER | 0.3kw | 0.4kw | 1.1kw | 1.1kw | 1.5kw |
FULL LOAD CURRENT | 1.8AMPS/220V | 2.0Amps/380v 2.3Amps/220v | 2.4Amps/380v 3.2Amps/220v | 3.0Amps/380v 3.5Amps/220v | 3.5Amps/380v 5.5Amps/220v |
Basic technical parameters: Model SFFCA73 (PMSM SERIES)
| No. | Main Configuration | Description | Photo |
| 1 | Motor | 1. Industry's top PMSM motor; Power: 1.5kw; Insulation class: F, 50/60HZ; 2. Energy efficiency rating IE2; Operating noise less than 40dB; 3. No gear box, no oil change, truly maintenance-free; |
|
| 2 | Electrical control system | Built-in safety protection module, Control system: Built-in safety protection module, automatically cut off the output in the event of an accident. |
|
| 3 | Blades | Our blade is made of 6063T5 special high-strength aviation magnesium-aluminum alloy material, which is extruded into one piece. |
|

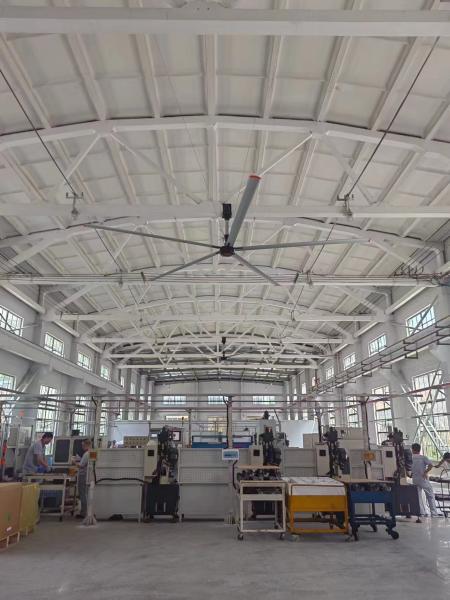

HVLS fans are a common sight in warehouses, distribution centers, factories and other large industrial spaces. Without continuous airflow, stagnant air can create havoc, aggravating respiratory conditions and promoting illness.
The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered under the product warranty.
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
|
|
