| Brand Name : | BIGFANS |
| Model Number : | BFFCA73 |
| Certification : | CE&ISO |
| Price : | Can Be Negotiable |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 1000 Per Month |
| Delivery Time : | 5-10 Working Days |
3 Phase 380V 1.5KW 7.3M HVLS Ceiling Fan With Control Box
Safety: we have more than 30 patents for structure design, make sure 100% safe.
Reliability: our motor and bearing make sure longer lifetime.
Gear box lubrication-free design, the motor is completely enclosed and dust-proof, daily only simple cleaning.
DIAMETER | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
MODEL | BFFCA38 | BFFCA50 | BFFCA62 | BFFCA73 |
AIR VOLUME | 11050m³/min | 12050m³/min | 13100m³/min | 14060m³/min |
MAXIMUM SPEED | 95RPM | 75RPM | 60RPM | 55RPM |
WEIGHT | 68Kg | 90Kg | 110Kg | 125Kg |
MOTOR POWER | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
FULL LOAD CURRENT | 2.4Amps/380v 4.2Amps/220v | 2.4Amps/380v 4.2Amps/220v | 3.5Amps/380v 6.1Amps/220v | 3.5Amps/380v 6.1Amps/220v |

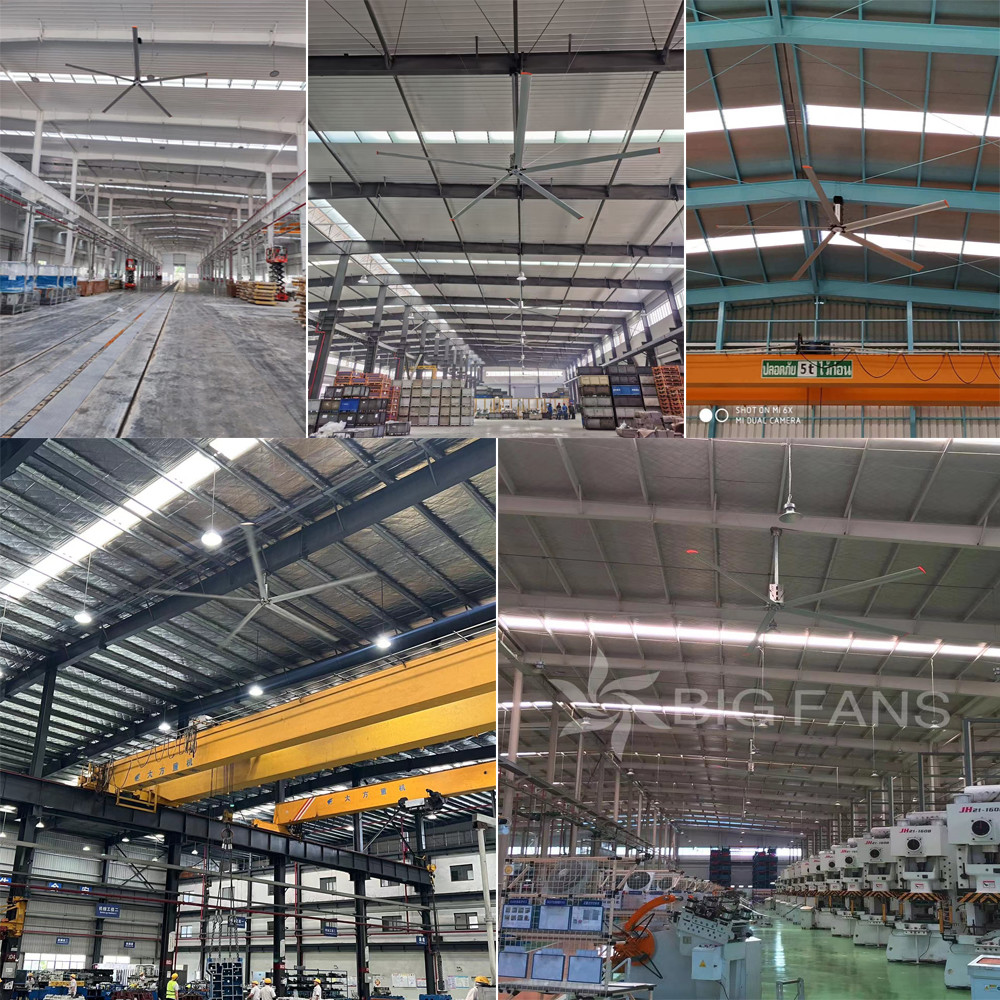

✔ Large warehouse, cold chain center: prevent goods from mildew, improve the working environment of employees
✔ Automotive, electronics, textile workshop: disperse welding smoke, dust, improve air quality
✔ Stadiums, airports, shopping malls: Solve the problem of hot and stuffy, reduce reliance on air
conditioning
Height < 8 m: recommended blade diameter 5-5.5 m, speed 75 RPM.
Height 8-15 meters: choose 7.3 meters blade, with longer extension tube.
High temperature/high dust environment: fully enclosed motor + anti-corrosion coating configuration is preferred.
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: Do you provide OEM Service?
A: Yes, We provide OEM Service for logo, color, blades quantity.
|
|
