| Brand Name : | BIGFANS |
| Model Number : | BFFCA73 |
| Certification : | CE&ISO |
| Price : | Can Be Negotiable |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 1000 Per Month |
| Delivery Time : | 5-10 Working Days |

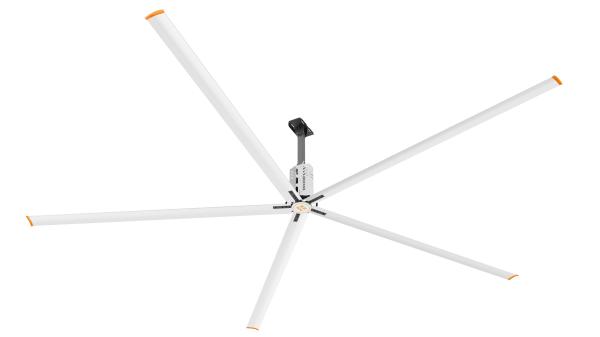

Beacon Industrial HVLS Ceiling Fan Reducer Big Ventilation Fan Diameter 7.3m For Warehouse Cooling
1. Equipped with a high-precision gear reduction box, it reduces the motor speed while increasing torque, ensuring that the fan blades can still generate strong wind at low speed, taking into account safety and energy efficiency.
2. Reduce mechanical wear from direct motor drive and extend equipment life.
3. Gear box lubrication-free design, the motor is completely enclosed and dust-proof, daily only simple cleaning.
DIAMETER | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
MODEL | BFFCA38 | BFFCA50 | BFFCA62 | BFFCA73 |
AIR VOLUME | 11050m³/min | 12050m³/min | 13100m³/min | 14060m³/min |
MAXIMUM SPEED | 95RPM | 75RPM | 60RPM | 55RPM |
WEIGHT | 68Kg | 90Kg | 110Kg | 125Kg |
MOTOR POWER | 1.5kw | 1.5kw | 1.5kw | 1.5kw |
FULL LOAD CURRENT | 2.4Amps/380v 4.2Amps/220v | 2.4Amps/380v 4.2Amps/220v | 3.5Amps/380v 6.1Amps/220v | 3.5Amps/380v 6.1Amps/220v |
✔ Large warehouse, cold chain center: prevent goods from mildew, improve the working environment of employees
✔ Automotive, electronics, textile workshop: disperse welding smoke, dust, improve air quality
✔ Stadiums, airports, shopping malls: Solve the problem of hot and stuffy, reduce reliance on air
conditioning
✔ Greenhouse, farm: adjust temperature and humidity, promote air circulation, reduce poultry heat stress
Height < 8 m: recommended blade diameter 5-5.5 m, speed 75 RPM.
Height 8-15 meters: choose 7.3 meters blade, with longer extension tube.
High temperature/high dust environment: fully enclosed motor + anti-corrosion coating configuration is preferred.
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: Do you accept OEM?
A: Yes, but we have MOQ requirement
|
|
