| Ask Lasest Price | |
| Brand Name : | BIGFANS |
| Model Number : | SFFCA73 |
| Certification : | CE&ISO |
| Price : | Can Be Negotiable |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 1000 Per Month |
| Delivery Time : | 5-10 Working Days |

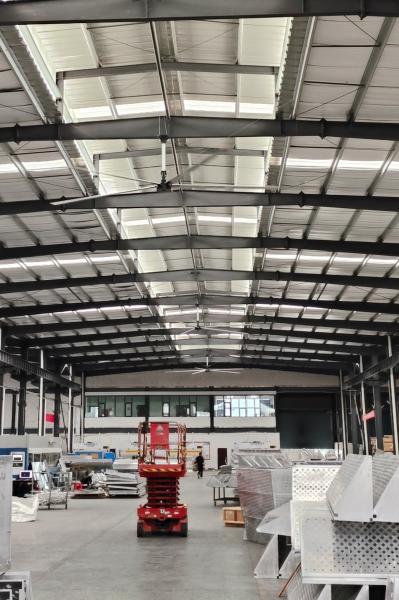

5 Silver Blades Fan Size from 2.5M to 7.3M Ceiling Mounted Fans
Unlike traditional high-speed fans, HVLS fans move massive volumes of air quietly and efficiently, making them ideal for warehouses, factories, hangars, gymnasiums, agricultural facilities, and commercial buildings.
1. Lower noise level
2. Wider and material durability blades
3. IP56-rated against dust, water jets, and other harsh environments
4. Equipped with high-torque, low-energy permanent magnet (PM) motors
DIAMETER | 8ft(2.5m) | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
MODEL | SFFCA25 | SFFCA38 | SFFCA50 | SFFCA62 | SFFCA73 |
AIR VOLUME | 6500m³/min | 8600m³/min | 13050m³/min | 14100m³/min | 15850m³/min |
MAXIMUM SPEED | 140RPM | 100RPM | 70RPM | 60RPM | 55RPM |
WEIGHT | 35Kg | 51Kg | 75Kg | 90Kg | 127Kg |
MOTOR POWER | 0.3kw | 0.4kw | 1.1kw | 1.1kw | 1.5kw |
FULL LOAD CURRENT | 1.8AMPS/220V | 2.0Amps/380v 2.3Amps/220v | 2.4Amps/380v 3.2Amps/220v | 3.0Amps/380v 3.5Amps/220v | 3.5Amps/380v 5.5Amps/220v |
Manufacturing Facilities
Warehouses
Distribution Centers
Agriculture & Horticulture
Fitness Centers
The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered under the product warranty.
Each fan is securely wrapped and placed in a sturdy wooden box with ample cushioning material to prevent any damage during transit, and a set of big fans is composed of a square box and a long box.
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
|
|
