| Brand Name : | BIGFANS |
| Model Number : | SFFCA73 |
| Certification : | CE&ISO |
| Price : | Can Be Negotiable |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 1000 Per Month |
| Delivery Time : | 5-10 Working Days |

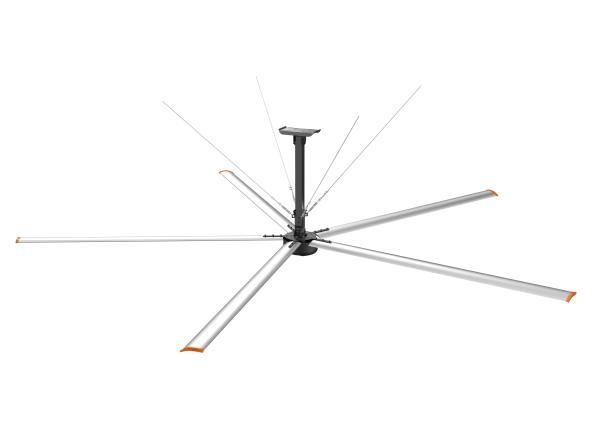

5m 16ft Lower Noise Pmsm Hvls Ceiling Fan For Church And Stadium
Beacon brand HVLS FANS are engineered to deliver unparalleled airflow efficiency for large industrial and commercial spaces. Designed with cutting-edge technology, these fans combine energy-saving performance with robust durability, making them the ideal choice for warehouses, manufacturing facilities, gymnasiums, hangars, and agricultural settings.
Centralized control systems bring convenience to your fingertips. Monitor and adjust individual fan settings from a single interface, allowing for effortless management of your environment, whether you're in a warehouse, gym, or manufacturing facility.
Different spaces have different needs. With the ability to control multiple HVLS fans through a centralized system, you can create customized airflow patterns that cater to specific activities or operational requirements.
DIAMETER | 8ft(2.5m) | 12ft(3.8m) | 16ft(5.0m) | 20ft(6.2m) | 24ft(7.3m) |
MODEL | SFFCA25 | SFFCA38 | SFFCA50 | SFFCA62 | SFFCA73 |
AIR VOLUME | 6500m³/min | 8600m³/min | 13050m³/min | 14100m³/min | 15850m³/min |
MAXIMUM SPEED | 140RPM | 100RPM | 70RPM | 60RPM | 55RPM |
WEIGHT | 35Kg | 51Kg | 75Kg | 90Kg | 127Kg |
MOTOR POWER | 0.3kw | 0.4kw | 1.1kw | 1.1kw | 1.5kw |
FULL LOAD CURRENT | 1.8AMPS/220V | 2.0Amps/380v 2.3Amps/220v | 2.4Amps/380v 3.2Amps/220v | 3.0Amps/380v 3.5Amps/220v | 3.5Amps/380v 5.5Amps/220v |
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company.
The Product Technical Support and Services for the PMSM Series HVLS Industrial Fans include:
- Maintenance recommendations to keep the fan running efficiently and prolong its lifespan.
- Warranty support to address any defects or malfunctions covered under the product warranty.
One set of PMSM ceiling fan is packed by two plywood case,one is for blades, the other is for motor,controller and installation spare parts.
Q: Are you factory or trading company?
A: We are factory which established more than 12 years.
Q: How is your motor’s quality compared with others?
A: High efficiency (85%~89%) is our strength.
Low repair rate (less than 0.08%).
All the motors have passed ISO9000, CE.
|
|
